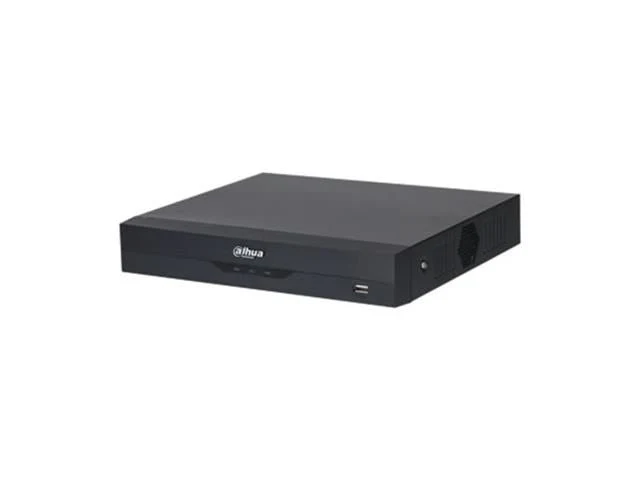

Dahua 16 channel Penta-brid 5M-N/1080P

Dahua 16 channel Penta-brid 5M-N/1080P

R3 293,23

  • H.265+/H.265 dual-stream video compression
  • Supports full-channel AI coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 24 channels IP camera inputs, each channel up to 6MP; Max 128Mbps incoming bandwidth
  • Up to 4 channels video stream (analogue channel) Perimeter Protection
  • Up to 16 channels video stream (analogue channel) SMD Plus
  • Up to 2 channels video stream (analog channel) human face recognition
  • IoT & POS functionalities
SKU: 895-29-XVR5116HS-I3 Category: Brand:

Dahua 16 channel Penta-brid 5M-N/1080P compact 1U DVR
H.265+/H.265 dual-stream video compression
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 24 channels IP camera inputs, each channel up to 6MP
Max 128Mbps Incoming bandwidth
P2P, Audio In/Out – 1/1, RCA and Audio over Coax
Supports 1 SATA HDD, up to 16TB

system
main processor Embedded processor
OS Embedded Linux
Perimeter protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel
face detection
Face Attributes 6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time.
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels, and a single channel can detect up to 12 faces.
Face Recognition
Face DatabaseCapacity Up to 10 face databases and 10,000 pictures.
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels
SMD Plus
SMD Plus by Recorder Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change
audio and video
Analog camera input 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
camera input 1. CVI: 5MP, 4MP, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.
2. TVI: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
3. AHD: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
IP camera input 16+8 channels, each channel up to 6MP
encoding capacity All channel 5M-N (1fps-10fps); 4M-N/1080p (1fps-15fps); 1080N/720p/960H/D1/CIF (1fps-25/30fps)
dual stream Supported (D1/CIF (1fps-15fps)).
video frame rate PAL: 1fps-25fps.
NTSC: 1fps-30fps.
video bit rate 32Kbps-6144Kbps Per Channel
audio sampling 8 kHz, 16 bits per channel
audio bit rate 64Kbps Per Channel
Bit rate type Video stream and composite stream.
video out 1 HDMI ,1 VGA
VGA: 1920×1080, 1280×1024, 1280×720
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720

It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
Multi screen display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25
Third-party Camera Access Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung;
compression standard
Video Compression AI Coding/H.265+/H.265/H.264+/H.264
Audio Compression G.711A/G.711u/PCM
network
NetworkProtocol HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile phone access iPhone, iPad, Android
interoperability ONVIF 16.12, CGI Conformant
browsers Chrome, IE9 or above, Firefox
network mode Single address mode
Recording playback
record mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Recording playback 1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
backup method USB Device/Network
playback mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
alarm
General alert Motion detection, video loss, tampering
Anomaly alert No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent alert Face detection, face recognition, perimeter protection
Alert Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
ports
Audio input 1, RCA (external)
16, BNC (coaxial)
audio out 1, RCA
Two way talk Yes (share the same audio input with the first channel)
HDD interfaces 1 SATA port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature
RS-485 1 port, for PTZ control
USB 2 USB ports (1 USB 2.0, 1 USB 3.0)
HDMI 1
VGA 1
network port 1 (10/100/1000Mbps Ethernet port, RJ-45)
general
power supply DC12V, 2A
power consumption Lower than 12W
net weight 1.17kg (2.58lb)
big weight 1.57kg (3.46lb)
ProductDimensions Compact 1U, 260.0mm × 237.4mm × 47.6mm (W × D × H) 10.24″ × 9.35″ × 1.87″ (W × D × H)
packaging dimensions 333.0 mm × 89.0 mm × 315.0 mm (L × W × H)
13.11″ × 3.50″ × 12.40″ (L × W × H)
operating temperature –10°C to +55°C (+14°F to +131°F)
Operating Humidity 10% – 90%
installation desktop
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
