Experience 2MP full HD color video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI camera presents a high quality color image with rich details even in total dark conditions. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. It adopts one powerful warm white LED illuminators, covering an effective range up to 20 m (65.61 ft). The LEDs switch on automatically in darkness to capture detail-packed full-color images 24/7, ensuring anthentic identificaiton of objects. It is an ideal choice for applications such as schools, retail centers and parking lots.
HDCVI - DOME CAMERAS

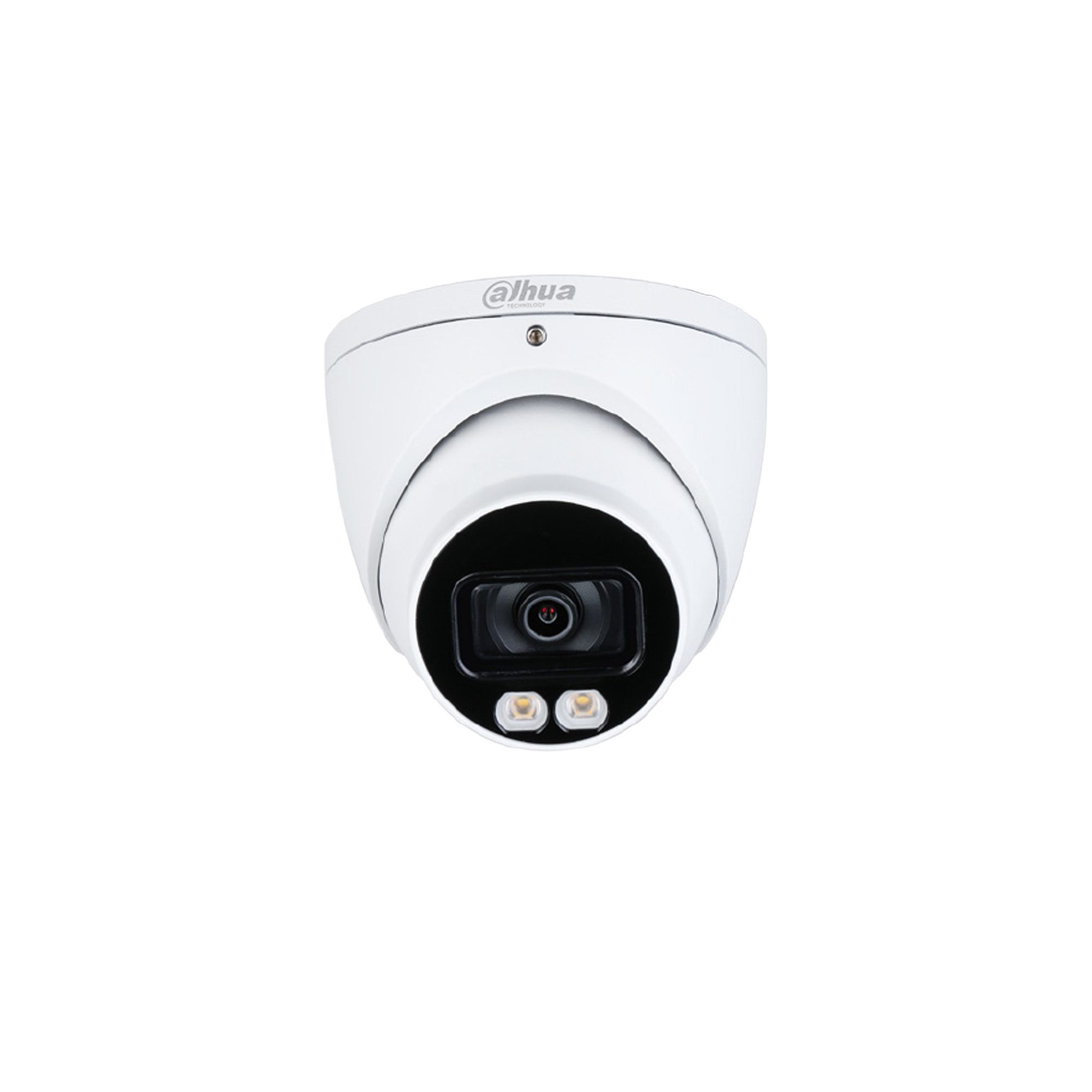

Dahua 2MP 1080P Eye ball dome, 2.8mm
R537,15
Dahua 2MP 1080P Eye ball dome, 2.8mm fixed lens
20m smart white light IR (warm light: 20m (65.62ft)), audio -mic
CVI/TVI/AHD/analogue video formats
Metal and plastic housing, IP67
- Full-color starlight
- 20 m illumination distance
- Max. 30fps@1080P
- CVI/CVBS/AHD/TVI switchable
- Fixed lens 2.8 mm
- IP67, 12V±30% DC
-
Camera Image Sensor 1/2.8″ CMOS Effective Pixels 1920(H)×1080(V), 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination 0.01Lux/F1.6, 0Lux white light on S/N Ratio More than 65dB IR Distance 20 m (65.61 ft) IR On/Off Control Auto / Manual IR LEDs 1 Lens Lens Type Fixed lens / Fixed iris Mount Type Board-in Focal Length 2.8mm Max Aperture F1.6 Angle of View 2.8 mm: 126.2° × 106° × 56.5° (diagonal × horizontal × vertical); Close Focus Distance 2.8 mm: 0.6 m (1.97 ft); DORI Distance Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. DORI Definition
Distance Detect 25px/m (8px/ft)
2.8mm: 38.6 m (126.6 ft) Observe 63px/m (19px/ft)
2.8mm: 15.4 m (50.5 ft) Recognize 125px/m (38px/ft)
2.8mm: 7.7 m (26.3 ft) Identify 250ppm (76px/ft)
2.8mm: 3.9 m (12.8 ft) Pan / Tilt / Rotation Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video Resolution 1080P (1920 × 1080); 720P (1280 × 720); 960H (960 × 576/960 × 480 Frame Rate CVI: PAL: 1080P@25fps; 720P@25fps;
NTSC: 1080P@30fps; 720P@30fps;
AHD:
PAL: 1080P@25fps;NTSC: 1080P@30fps
TVI:
PAL: 1080P@25fps;
NTSC: 1080P@30fps
CVBS:
PAL: 960H;
NTSC: 960H
Video Output 1-channel BNC high definition video output / CVBS video output (Can switch) Day/Night Auto (ICR) / Manual OSD Menu Multi-language BLC Mode BLC / HLC / DWDR WDR DWDR Gain Control AGC Noise Reduction 2D White Balance Auto / Manual Smart IR Auto / Manual Certifications Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface Audio Interface N/A Eelectrical Power Supply 12V DC ±30% Power Consumption Max 3.0W (12V DC, IR on) Environmental Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH Ingress Protection & Vandal Resistance IP67 Construction Casing Inner core: metal + plastic Cover: plastic Pedestal: plastic Dimensions φ97.1 mm × 91.4 mm (φ3.82″ × 3.6″) Net Weight 0.21 Kg (0.46 lb) Gross Weight 0.28 Kg (0.62 lb)
